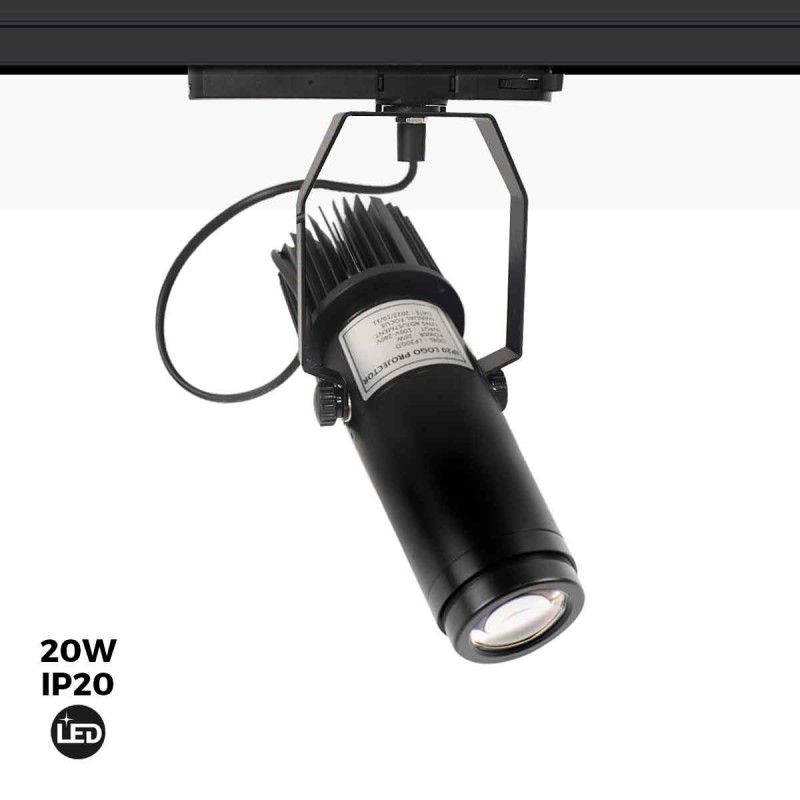

3-phase track GOBO LED Projector - 20W - Optics 20° - IP20

1 review(s)
https://www.barcelonadisplays.com/web/image/product.template/3536/image_1920?unique=f9749cf

LED GOBO Projector with 20W power for projecting logos, images, and emblems indoors. Logo projectors are also known as LED GOBO, GOBO projector, or GOBO LED.

Projects still images in high definition. It is designed to be installed on indoor three-phase tracks.

20° Optics with manually adjustable focus.

Includes a remote control (battery A23-12V not included) for on, off, fixed or rotating projection.

It reaches a range of 5-15 meters in darkness and 3-4 meters in daylight, with a luminous intensity of 2200 lumens.

Barcelona LED offers laser engraving service for logos on mirror glass. The purchase of the projector spotlight includes the engraving of one initial logo with up to 4 colors for free (estimated delivery time: 10-15 days).

Ref. BLP20I-TRI-F

124.94 € 124.94 EUR 124.94 €

103.26 €

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Download product data sheet
Product Review's
1
Comprador verificado
Es la 2º proyector que compramos aquí y en los dos ha habido falta de asesoramiento por parte de los comerciales ,en a parte técnica nos perdemos y deben de explicar al vender ,el tema de la lente, si se vé el fondo en blanco o el logo ocupa toda la pantalla. Decepcionados doblemente porque con ambos proyectores nos ha pasado lo mismo. Solución que nos dan, pagar otra lente.

Certs CE | ROHS
Energy efficiency class F
CRI 80-85
Dimensions (mm) LxWxH Ø 50 x 195 x 280
Driver Internal
Frequency (Hz) 50 - 60
Guarantee According to legal warranty: 3 years
IP IP20
Lumens (Lm) 2200
Material Aluminum
Material diffuser Crystal
Assembly Surface
Orientable Yes
Power (W) 20
Temperature range -20°F to +50°F
Sensor No
Nominal Voltage (V) 100-240V
Track Type Three-phase
Type of LED OSRAM Chip
Outdoor Use No
Service life (h) 30000
Product Image

20W Fixed Indoor Logo Projector for Three-Phase Track

The indoor track-mounted logo projector projects images and logos clearly and in high definition, with a visibility range of 5 to 15 meters in the dark and 3 to 4 meters in full daylight.

  • Fixed projection: Allows the projection of still images in high definition.

  • 180° Rotation Angle: The ability to rotate 180 degrees allows for directing the projection in the desired direction, adapting to different space configurations and specific needs.

  • High definition and adjustable focus: It features a 20° optical lens. The optical head can be rotated to adjust the definition and focus of the image, ensuring that your logo or message is displayed with the utmost clarity.

  • Image Personalization: You can create custom images engraved on a specially made mirror surface for the optics of the LED spotlight, making your projections unique and perfectly tailored to your needs.

  • IP20 Protection Rating: Designed for exclusive use in indoor spaces.

  • Efficient heat dissipation: Its structure allows for proper heat dissipation, maintaining an optimal temperature during operation and extending the lifespan of the LED chips and all their components.

Custom logo engraving service using laser

In Barcelona LED, we provide a logo engraving service by laser on mirror glass. The purchase of the LED GOBO projector includes engraving of an initial logo in up to 4 colors (Estimated delivery time: 10-15 days).

For proper laser engraving, please send a vector file (.eps, .ai, .svg) in Adobe Illustrator, Corel Draw, Sketch Up, etc., with no gradients, in solid colors.

Image files .PNG / .JPG / .PDF are also accepted, as long as they are high resolution (minimum 300dpi) and meet the design model. Always with a white background, without gradients, textures, or shadows. The color should match closely with the available glass color tones.

Once the purchase is confirmed, please send an email with the file to be recorded to the address "gobo@barcelonaled.com," indicating your order confirmation number as a reference. Our technical department will promptly assist with any questions.

LED GOBO Applications

The 20W LED logo projector is a perfect advertising product to visually highlight brands, promotions, products, and insignias in:

✔ Events and inaugurations: Adds color and highlights products or brands.

✔ Restaurants and hotels: Add value to your business by visually standing out at any time and type of event.

✔ Shopping Malls: Make your business stand out from the competition with a special addition.

✔ Conferences, fairs, exhibitions: attract customers to your booth.
